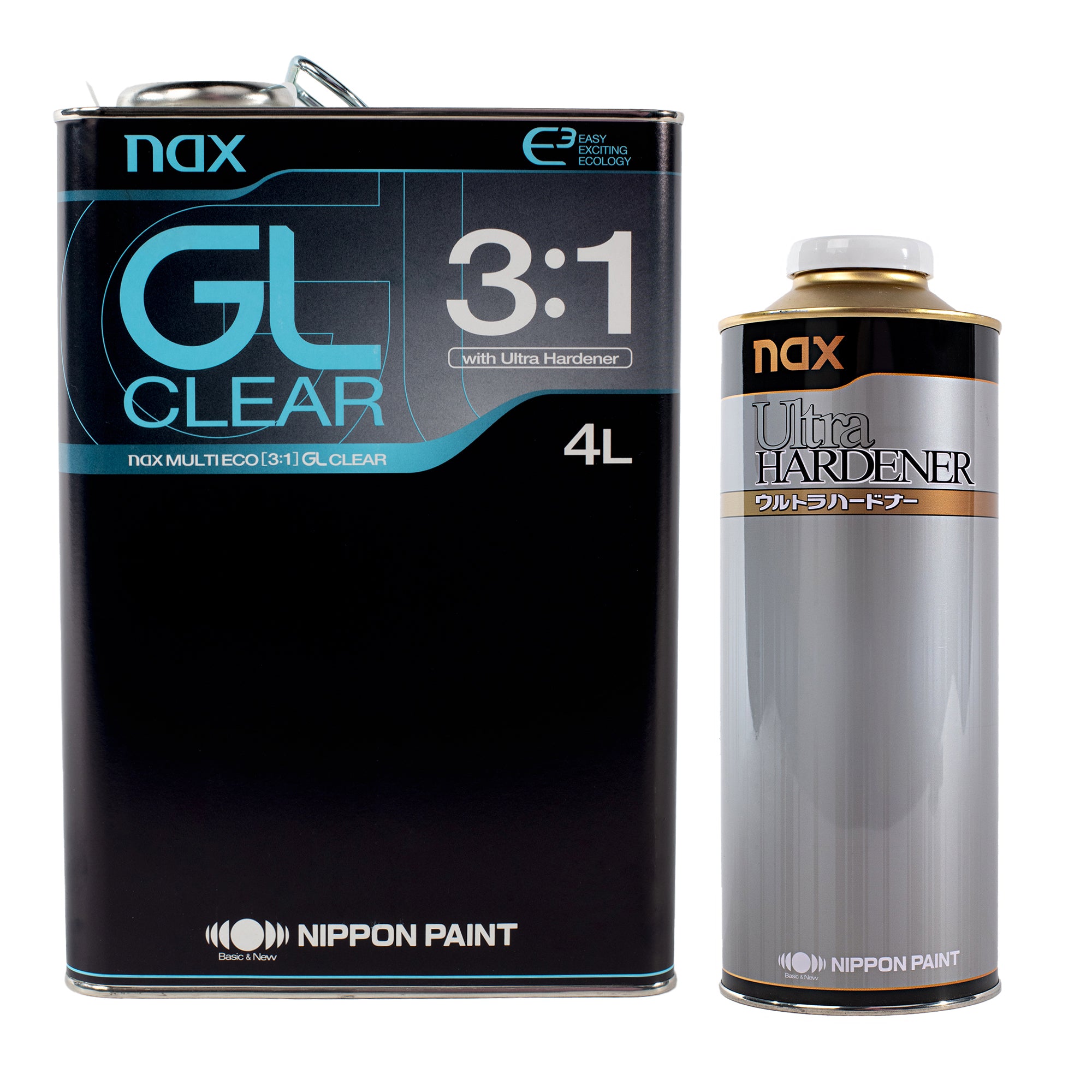

Automobile varnish NAX MULTI ECO(3:1) GL CLEAR NIPPON PAINT 4 l. Made in Japan

Lacquer NIPPON PAINT Nax Multi Eco (3:1) GL CLEAR, NIPPON PAINT

COUNTRY OF MANUFACTURER: Japan

Two-component fast-drying varnish of increased strength.
It is recommended for covering parts subject to mechanical influences (bonnet, front bumper, door sills, etc.).
Main components:
- Lacquer — nax Multi Eco (3:1) Glass Clear — based on acrylic resins.
- Hardener nax Multi Eco (3:1) Glass Hardener — polyisocyanate resins.

PROPORTIONS WHEN MIXING BY WEIGHT
Standard system:
- 100 Varnish — Multi Eco (3:1) Glass Clear
- 33 Multi Eco hardener (3:1) Glass Hardener #10, #20, #30
- 10-20 Multi Urethane Thinner
For plastic parts:
- 100 Varnish — Multi Eco (3:1) Glass Clear
- 25 Bumper Hardener
- 0-15 Multi Urethane Thinner
Working viscosity: 14 — 15 seconds, according to the Ford Cup viscometer at 20°C.
Shelf life after mixing: 2 hours at 20°C
Coating film thickness (dry film): 40-50 microns

Drying time 20°C (60 °C)

- from dust 15 min (5 min)
- "at low tide" 2 hours (10 minutes)
- complete dryness 4 hours (15 minutes)
VOCs. Theoretical concentration of volatile compounds: 580 g / liter at 10% solvent content
NOTE
Use the finished mixture immediately after mixing.
Do not try to extend the shelf life by adding a solvent.
Type of spray gun, nozzle diameter and working pressure:
Spray gun: IWATA W400
Nozzle diameter: 1.2-1.4 mm
Working pressure: 2-2.5 bar
Causing:
Apply 2 or 3 single layers with an interval of 5-10 minutes between layers (depending on the temperature and thickness of the coating film) for evaporation. Forced drying between layers is possible by blowing air.
Do not apply very thick layers.
If there is a need to increase the thickness of the film, divide it into several layers during application.
